1280x1024 / 640x512 Network û Derketina Dual Dîjîtal Module Module
Kenivîs
Cins | SG - SWZ 12ND2 - 17510 | SG - SWZ06ND2 - 17510 | |
Sedema | Sensora wêneyê | 1/2 "Sony Ingaas Global Shutter Swir Sensor IMX990 | 1/4 "Sony Ingaas Global Shutter Swir Sensor IMX991 |
| Pixelên bi bandor | Nêzikî. 1.34MP | Nêzikî. 0.34MP | |
| Mezinahiya pixel | 5μm | ||
Nîsk | Dirêjahiya berfê bersiv | 1000 ~ 1700nm | |
| ICR | Piştgirî 2 Modes: Bandora Wide: 1000 ~ 1700nmnarrow Band: 1450 ~ 1700NM | ||
| Dirêjahiya Fokal | 17mm ~ 510mm, 30x zoom optîk | ||
| Kirrîn | F2.8 ~ F5.5 | ||
| Zeviya dîtinê | H: 21.3 ° ~ 0.71 °, V: 17.1 ° ~ 0.57 °, D: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °, V: 9.3 ° ~ 0.3 °, D: 14.8 ° ~ 0.47 ° | |
| Dûrbûna Focusê nêzîk | 1m ~ 10m (wide ~ tele) | ||
| Leza zoom | Nêzikî. 7s (tele optîk ~ tele) | ||
Vîdyîre | Zexmî | H.265 / H.264 / H.264H / MJPEG | |
| Resolution | 25/9 30/50 / 60fps @ 1280 × 1024 | 25/9 30/50 / 60fps @ 640 × 512 | |
| Vîdyoyê bit | 32kbps 16mbps | ||
| Deng | Aac / mp2l2 | ||
| LVDs Video | 25/9 30/50 / 60fps @ 2mp (1920 × 1080) | ||
Tort | Embarkirinî | TF Card (256 GB), FTP, NAS | |
| Protokola torê | Onvif, http, HTTPS, IPV4, IPV6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Alîkarî | ||
| Nûvekirina Firmware (LVDS) | Tenê dikare bi riya torê ya firmware nûve bike | ||
| Bûyerên Giştî | Tevger, Tamper, Karta SD, Tora | ||
| IVS | Tripwire, Detection CROSS, Detective Absment, Fast - Detectasyona Parkkirinê, Girêdana Parkkirinê, Mijara Berhevkirina Missing, Detectasyona Loitering. | ||
| Kêmkirina dengê | 2D / 3D | ||
| Mode Exposion | Manual, Auto, Pêşîniya Aperture, Pêşîniya Shutter | ||
| Tespîtiya berbiçav | Alîkarî | ||
| Leza Shutter | 1/1 ~ 1/30000s | ||
| Mode Mode | Auto / Manual / nîv otomatîk | ||
| Deftera elektronîkî | Alîkarî | ||
| Kêmkirina germê | Alîkarî | ||
| Flip | Alîkarî | ||
| Eis | Alîkarî | ||
| Zoom dîjîtal | 16x | ||
| Kontrola derveyî | TTL | ||
| Navbeynkar | Porta 4pin Ethernet Port, 6pin Serial & Power Port, 5pin Audio Port.30pin LVDS | ||
| Protokola ragihandinê | Sony Visca, Pleco D / P | ||
| Mercên xebitandinê | - 30 ~ + 60 ° C / 20% ~ 80% RH | ||
| Conditionsertên hilanînê | - 40 ~ + 70 ° C / 20% ~ 95% RH | ||
| Navê min | DC 12V | ||
| Sermiyana Power (TBD) | Avg: 6w; Max: 11w | ||

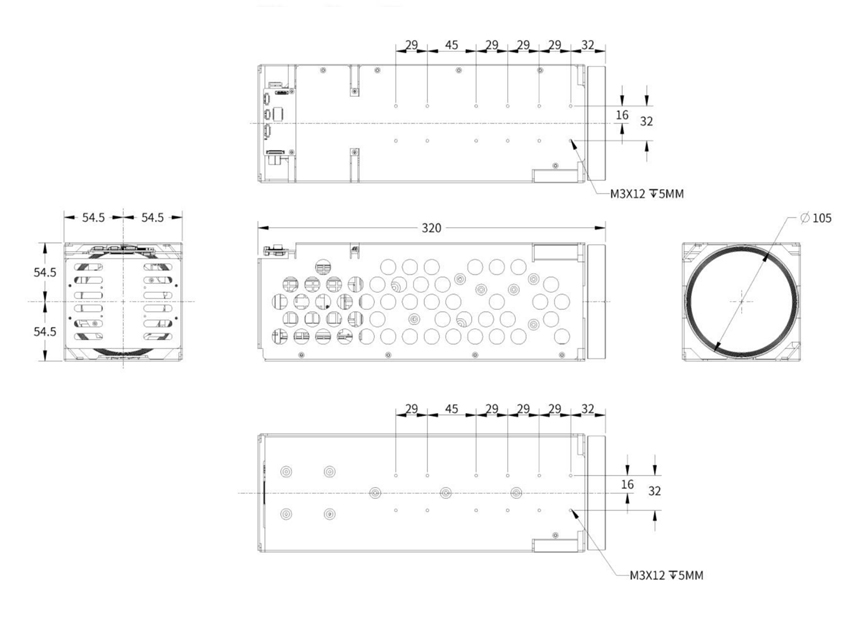

| Dimîne (L * W * H) | Nêzikî. 320mm * 109mm * 109mm | ||
| Pîvan | 3.1kg | ||
Interface torê
| Awa | Hejmara Pin | Navê Pin | Terîf |
| J2_4pin Ethernet Interface | 1 | EtRx - | Porta Ethernet a Adaptive, Internet Rx - |
| 2 | ETRX + | Porta Ethernet a Adaptive, Internet Rx + | |
| 3 | ETHTX - | Porta Ethernet a Adaptive, Internet Tx - | |
| 4 | ETHTX + | Porta Ethernet Adaptive, Internet TX + | |
| J3_6PIN Power & UART Interface | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | Rxd1 | TTL Asta 3.3V, Protokola Pelco | |
| 4 | TXD1 | TTL Asta 3.3V, Protokola Pelco | |
| 5 | Rxd0 | Asta TTL 3.3v, Protokola Visca | |
| 6 | TXD0 | Asta TTL 3.3v, Protokola Visca | |
| J1_5pin Audio Interface | 1 | Audio_out | Audio Out (Line Out) |
| 2 | GND | GND | |
| 3 | Audio_in | Audio In (Line In) | |
| 4 | GND | GND | |
| 5 | NC | NC |
Navbeynê lvds
| Bender | Jimare | Navê Pin | Terîf |
| J4_30pin LvDs Interface (Wekî Sony 30pin Interface Digital) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | DC Output (DC + 7V ~ + 12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | Uart1_tx | TTL Asta 3.3v, Protokola Visca, eynî TXD0 li ser porta j3_6pin. Lê nekare di heman demê de têkildar be. | |
| 19 | Uart1_rx | TTL Asta 3.3V, Protokola Visca, eynî li ser porta J3_6pin heman. Lê nekare di heman demê de têkildar be. | |
| 20 | GND | GND | |
| 21 | Txout0 - | ||
| 22 | TXOUT0 + | ||
| 23 | Txout1 - | ||
| 24 | Txout1 + | ||
| 25 | Txout2 - | ||
| 26 | Txout2 + | ||
| 27 | Txoutclk - | ||
| 28 | Txoutclk + | ||
| 29 | Txout3 - | ||
| 30 | Txout3 + |
